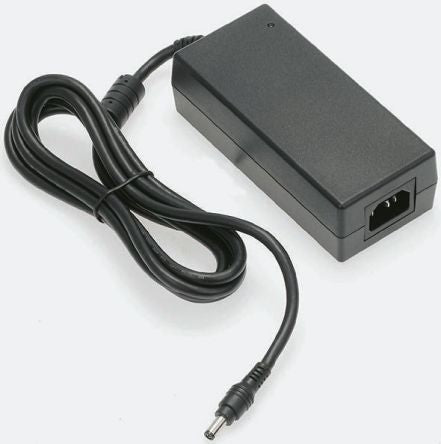

Artesyn Embedded Technologies 15V dc Power Supply, 4A [DPS54]; 513-1323
0₫
Mã kho: 5131323
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 90 → 264 V ac, 127 → 300 V dc |
| Output Voltage Rating | 15 V dc |
| Output Current Range | 4A |
| Input Connector | IEC320-C14 |
| Output Connection Type | 2.5 mm Centre Positive |
| Number of Outputs | 1 |
| Medical Approved | Yes |
| Load Regulation Range | ±2% |
| Maximum Temperature | +40°C |
| Overall Width | 60.7mm |
| Energy Efficiency Level | V |
| Overall Dimensions | 133 x 60.7 x 41mm |
| Weight | 480g |
| Standards Met | ErP Compliant |
| Cable Length | 2000mm |
| Overall Depth | 41mm |
| Overall Length | 133mm |
| Minimum Temperature | 0°C |
| Efficiency | 0.8 |
| Operating Temperature Range | 0 → +40 °C |
