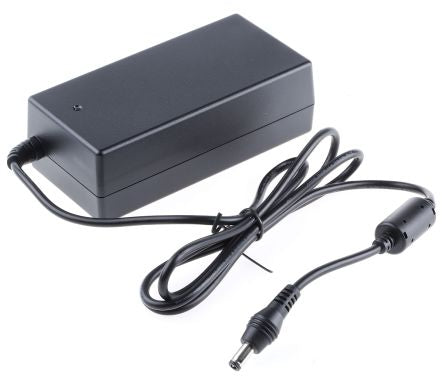

Artesyn Embedded Technologies 12V dc Power Supply, 3.33A, C14 Connector [DP4012N3M]; 721-0970
0₫
Mã kho: 7210970
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 90 → 264 V ac, 127 → 300 V dc |
| Output Voltage Rating | 12 V dc |
| Output Current Range | 3.33A |
| Input Connector | IEC320-C14 |
| Output Connection Type | 2.5 x 5.5 mm Centre Positive |
| Number of Outputs | 1 |
| Plug Type | C14 |
| Medical Approved | Yes |
| Load Regulation Range | ±5% |
| Overall Dimensions | 124 x 61 x 39.5mm |
| Energy Efficiency Level | V |
| Standards Met | ErP Compliant |
| Maximum Temperature | +40°C |
| Cable Length | 1219mm |
| Overall Depth | 39.5mm |
| Overall Width | 61mm |
| Minimum Temperature | 0°C |
| Operating Temperature Range | 0 → +40 °C |
| Overall Length | 124mm |
| Weight | 250g |
