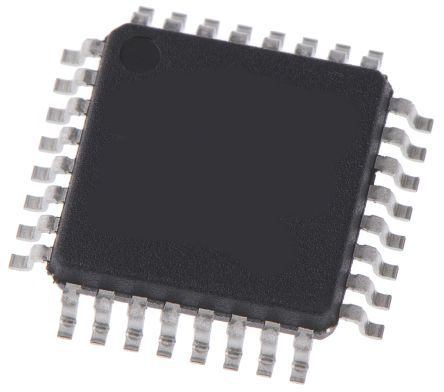

ON Semiconductor, MC100EP195FAG [MC100EP195FAG]; 186-9167
0₫
Mã kho: 1869167
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Delay to First Tap | 2.2ns |
| Total Number of Taps | 1024 |
| Absolute Increment | 10ps |
| Maximum Delay Time | 12.2ns |
| Number of Independent Delay Inputs | 10 |
| Mounting Type | Surface Mount |
| Package Type | LQFP |
| Pin Count | 32 |
| Dimensions | 7 x 7 x 1.45mm |
| Height | 1.45mm |
| Length | 7mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 3 V |
| Minimum Operating Temperature | -40 °C |
| Width | 7mm |
