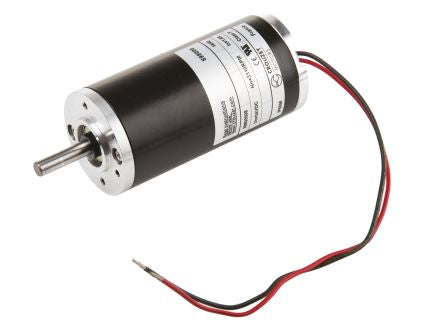

Crouzet Brushed DC Motor, 36 W, 24 V dc, 75 mNm, 3100 rpm, 6mm Shaft Diameter [89800008]; 789-3010
by Crouzet
0₫
Mã kho: 7893010
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V dc |
| DC Motor Type | Brushed |
| Power Rating | 36 W |
| Output Speed | 3100 rpm |
| Shaft Diameter | 6mm |
| Maximum Output Torque | 75 mNm |
| Length | 113.5mm |
| Dimensions | 42 (Dia.) x 113.5 mm |
| Current Rating | 6.1 A |
| Core Construction | Permanent Magnet |
