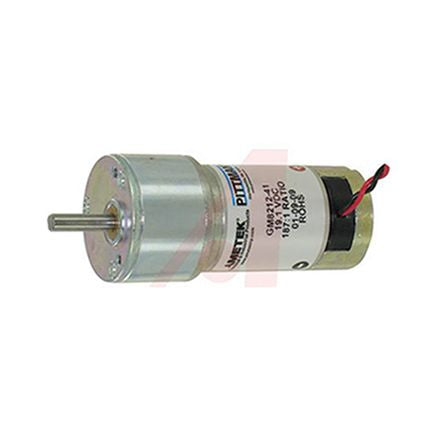

PITTMAN AMETEK TIP, 19.1 V, 18 oz-in, Brushed DC Geared Motor, Output Speed 373 rpm [GM8212-21]; 921-3817
0₫
Mã kho: 9213817
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Speed | 373 rpm |
| Supply Voltage | 19.1 V dc V dc |
| Maximum Output Torque | 18 oz-in |
| DC Motor Type | Brushed |
| Shaft Diameter | 4.76mm |
| Power Rating | 2.7 W |
| Gearhead Type | Spur |
| Length | 75.62mm |
| Width | 34.8 (Dia.)mm |
| Dimensions | 75.62 x 34.8 (Dia.) mm |
| Current Rating | 210 mA |
| Shaft Angle | Straight |
| Series | GM 8000 |
| Standards Met | RoHS |
| Gear Ratio | 19.5:1 |
