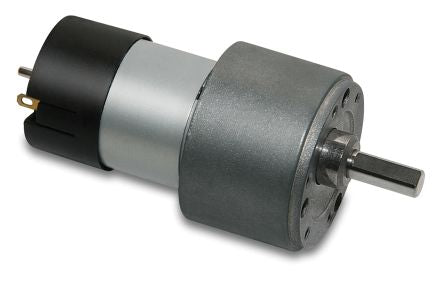

Micromotors, 24 V dc, 100 Ncm DC Geared Motor, Output Speed 6.5 rpm [1308-24-510]; 877-7146
by Micromotors
0₫
Mã kho: 8777146
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Speed | 6.5 rpm |
| Supply Voltage | 24 V dc |
| Maximum Output Torque | 1 Nm |
| Shaft Diameter | 6mm |
| Gearhead Type | Spur |
| Length | 72mm |
| Width | 39.6mm |
| Dimensions | 39.6 (Dia.) x 100.5 mm |
| Current Rating | <50 (No Load) mA, 80 (Max Torque) mA |
| Shaft Angle | Straight |
| Series | 1308 |
| Gear Ratio | 512.85:1 |
