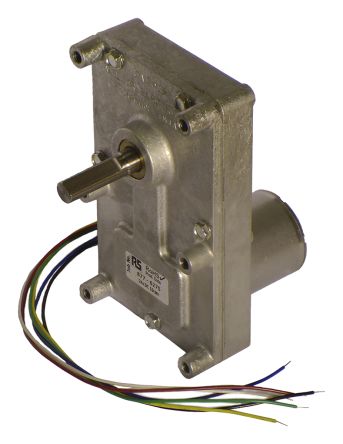

Mellor Electric, 24 V dc, 171 Kgcm, Brushless DC Geared Motor, Output Speed 10 rpm [FBB1002]; 877-6275
0₫
Mã kho: 8776275
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Speed | 10 rpm |
| Supply Voltage | 24 V dc |
| Maximum Output Torque | 17 Nm |
| DC Motor Type | Brushless |
| Shaft Diameter | 8.5mm |
| Power Rating | 9 W |
| Length | 69.85mm |
| Width | 73mm |
| Depth | 119mm |
| Dimensions | 69.85 x 119 x 73 mm |
| Current Rating | 540 mA |
| Standards Met | RoHS |
| Series | FBB |
| Shaft Angle | Straight |
