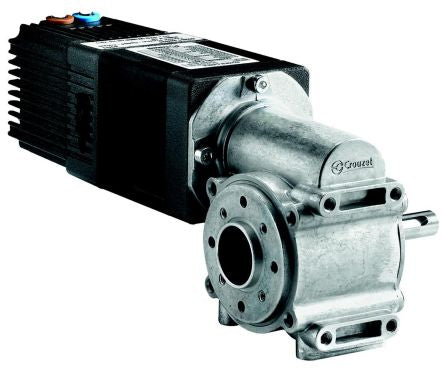

Crouzet, 60 V dc, 10 Nm, Brushless DC Geared Motor, Output Speed 198 rpm [80281013]; 122-0036
by Crouzet
0₫
Mã kho: 1220036
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Speed | 198 rpm |
| Supply Voltage | 60 V dc |
| Maximum Output Torque | 10 Nm |
| DC Motor Type | Brushless |
| Shaft Diameter | 9.99mm |
| Power Rating | 136 W |
| Gearhead Type | Right Angle |
| Length | 183mm |
| Width | 92.2mm |
| Depth | 93mm |
| Dimensions | 183 x 92.2 x 93 mm |
| Current Rating | 0 |
| Standards Met | CE, EC, EN55022 |
| Gear Ratio | 0.834027777777778 |
| Series | 80 281 TNI21 |
