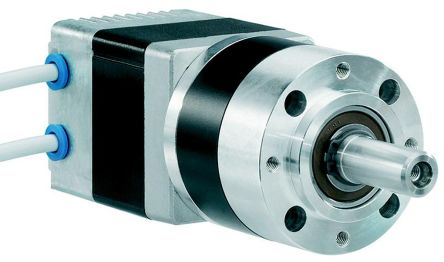

Crouzet, 100 V dc, 30.7 Nm, Brushless DC Geared Motor, Output Speed 40 rpm [80149646]; 122-0061
by Crouzet
0₫
Mã kho: 1220061
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Speed | 40 rpm |
| Supply Voltage | 100 V dc |
| Maximum Output Torque | 30.7 Nm |
| DC Motor Type | Brushless |
| Shaft Diameter | 14mm |
| Power Rating | 125 W |
| Gearhead Type | Planetary |
| Length | 57.2mm |
| Width | 57.2mm |
| Depth | 245.8mm |
| Dimensions | 57.2 x 57.2 x 245.8 mm |
| Current Rating | 0 |
| Series | 80 149 6 SMI21 |
| Gear Ratio | 99.5:1 |
| Shaft Angle | Straight |
| Standards Met | CE, EC, EN55022 |
