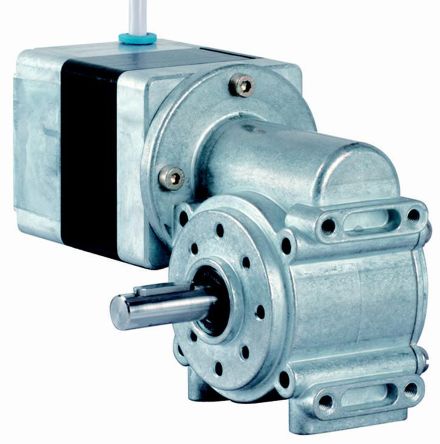

Crouzet, 9 to 56 V dc, 10 Nm, Brushless DC Geared Motor, Output Speed 1100 rpm @ 12 V, 3000 rpm @ 24 V, 4000 rpm @ 48 V [80141014]; 122-0058
by Crouzet
0₫
Mã kho: 1220058
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Speed | 1100 rpm @ 12 V, 3000 rpm @ 24 V, 4000 rpm @ 48 V |
| Supply Voltage | 9 to 56 V dc |
| Maximum Output Torque | 10 Nm |
| DC Motor Type | Brushless |
| Shaft Diameter | 9.99mm |
| Power Rating | 66 W |
| Gearhead Type | Worm |
| Length | 194mm |
| Width | 93mm |
| Depth | 92.2mm |
| Dimensions | 194 x 93 x 92.2 mm |
| Current Rating | 6.1 A @ 48 V, 7 A @ 12 V, 9.5 A @ 24 V |
| Series | 801410 SMI21 |
| Gear Ratio | 30 |
