![Crouzet 80141013 1220057](http://nguyenxuong.com/cdn/shop/products/R1220057-01_440x444.jpg?v=1594270401)

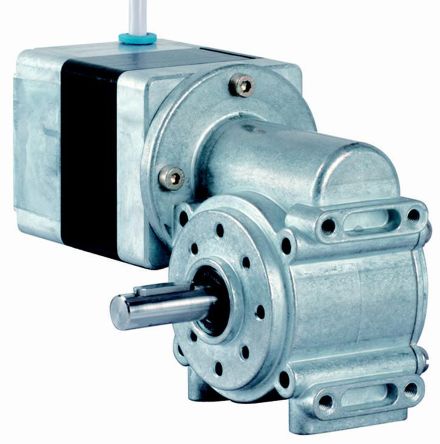

Crouzet, 9 to 56 V dc, 10 Nm, Brushless DC Geared Motor, Output Speed 1100 rpm @ 12 V, 3000 rpm @ 24 V, 4000 rpm @ 48 V [80141013]; 122-0057
by Crouzet
0₫
Mã kho: 1220057
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Speed | 1100 rpm @ 12 V, 3000 rpm @ 24 V, 4000 rpm @ 48 V |
Supply Voltage | 9 to 56 V dc |
Maximum Output Torque | 10 Nm |
DC Motor Type | Brushless |
Shaft Diameter | 9.99mm |
Power Rating | 66 W |
Gearhead Type | Worm |
Length | 194mm |
Width | 93mm |
Depth | 92.2mm |
Dimensions | 194 x 93 x 92.2 mm |
Current Rating | 6.1 A @ 48 V, 7 A @ 12 V, 9.5 A @ 24 V |
Series | 801410 SMI21 |
Gear Ratio | 20 |
