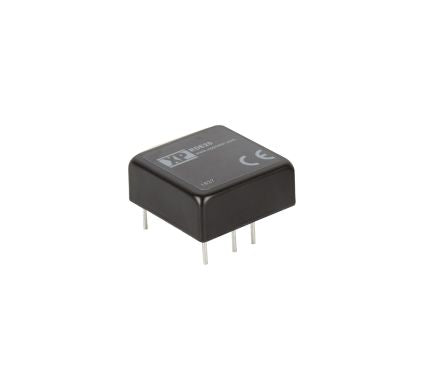

XP Power RDE20 20W Isolated DC-DC Converter Through Hole, Voltage in 13 → 70 V dc, Voltage out 12V dc Railway [RDE2024S12]; 186-2911
by XP Power
0₫
Mã kho: 1862911
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 13 → 70 V dc |
| Input Voltage Nominal | 24 → 48 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 20W |
| Output Current | 1.67A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.89 |
| Railway Approved | Yes |
| Load Regulation | ±0.5% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Series | RDE20 |
| Length | 25.4mm |
| Width | 25.4mm |
| Depth | 10.41mm |
