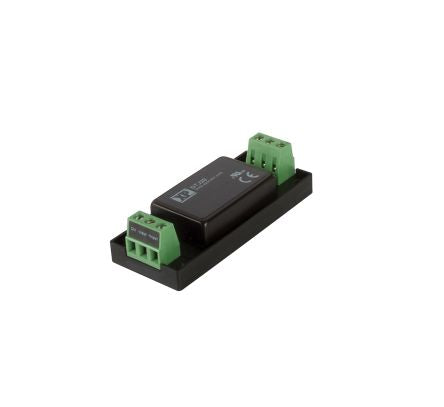

DC/DC Converter Isolated 15V 20W [DTJ2048S15]; 193-5901
by XP Power
0₫
Mã kho: 1935901
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 18 → 75 V dc |
| Power Rating | 20W |
| Output Current | 1.33A |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 3kV dc |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Efficiency | 0.9 |
| Minimum Temperature | -40°C |
| Load Regulation | ±0.5% |
| Maximum Temperature | +100°C |
| Depth | 19.4mm |
| Series | DTJ20 |
| Length | 76.2mm |
| Width | 31.4mm |
