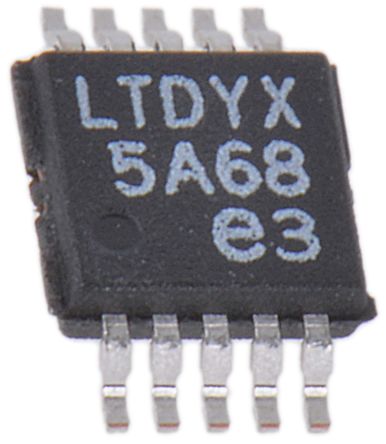

Boost Flyback SEPIC Controller MSOP10EP [LT3757IMSE#PBF]; 155-6726
0₫
Mã kho: 1556726
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Controller Type | Boost Controller, Flyback Controller, Inverting, SEPIC Controller |
| Number of Outputs | 1 |
| Maximum Switching Frequency | 1000 kHz |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Pin Count | 10 |
| Dimensions | 3 x 3 x 0.7mm |
| Length | 3mm |
| Width | 3mm |
| Height | 0.7mm |
| Maximum Input Voltage | 40 V |
| Maximum Operating Temperature | +125 °C |
| Maximum Output Current | 12µA |
| Maximum Output Voltage | 350 V |
| Minimum Input Voltage | 2.9 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Output Voltage | 1.569 V |
