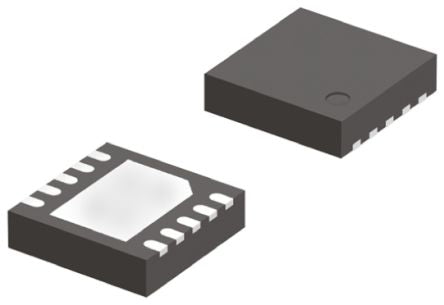

Linear Technology LT3487EDD#PBF, DC-DC Controller 2150 kHz 10-Pin, DFN [LT3487EDD#PBF]; 154-6366
0₫
Mã kho: 1546366
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Controller Type | Boost Controller, Inverting |
| Number of Outputs | 1 |
| Maximum Switching Frequency | 2150 kHz |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Pin Count | 10 |
| Dimensions | 3 x 3 x 0.7mm |
| Length | 3mm |
| Width | 3mm |
| Height | 0.7mm |
| Maximum Input Voltage | 16 V |
| Maximum Operating Temperature | +85 °C |
| Maximum Output Current | 45mA |
| Maximum Output Voltage | 28 V |
| Minimum Input Voltage | 2.3 V |
| Minimum Operating Temperature | -40 °C |
