The swivel tie mount in black is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in outdoor environments. It is used with cable ties miniature, intermediate, standard, and light-heavy cable

Name: The swivel tie mount in black is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in outdoor environments. It is used with cable ties miniature, intermediate, standard, and light-heavy cable
Brand: Panduit
SKU: PAP366
Price: 51700.0 VND
Availability: InStock

by Panduit

51.700₫

(Giá chưa VAT).

Mã kho: PAP366

Mã nhà sản xuất: TM3-X2-C0Y

Đơn vị tính: RL

Quy cách đóng gói: 100

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit TM3-X2-C0Y

MÔ TẢ SẢN PHẨM

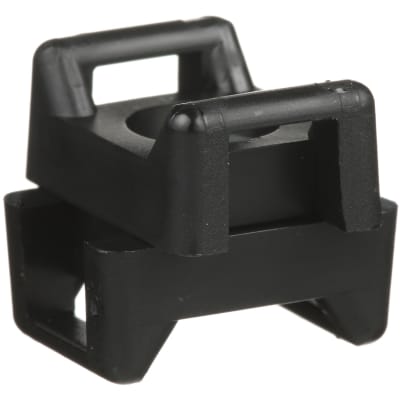

Panduit TM3-X2-C0Y Swivel Mounts fasten two mounts securely together with a connecting rivet that allows both mounts to rotate freely. Great for heavy duty applications as they protect against abrasion and harsh outdoor elements. Mounts are .87” x .75” (22.1 x 19.1 mm) and have a pull apart force of

_THÔNG SỐ KỸ THUẬT:

Application	Swivel Tie Mount used with Cable Ties Miniature, Intermediate, Standard, and Light-Heavy Cable Ties
Note	TM3-X2-C0Y replaces TM3-X2-C0
Product Type	Cable Tie Mount
Color	Black
Environment	Indoor/Outdoor
Material	Weather Resistant Nylon 6.6
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Mount Method	Cable Tie
Overall Height (In.)	0.75
Overall Height (mm)	19
Overall Length (In.)	0.87
Overall Length (mm)	22.1
Overall Width (In.)	0.62
Overall Width (mm)	15.8
Resistance Properties	UV Resistant
Standards Met	RoHS Compliant
For Use With	Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties
