Cable Accessories, Ties & Tools > Cable Tie Mounts

The cable tie mount in natural color is applied with a #6 (M3) screw and is 0.43" (10.9 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 100.

by Panduit
8.200₫
(Giá chưa VAT).
Mã kho: PAP349

Mã nhà sản xuất: TM2S6-C

Đơn vị tính: PC

Quy cách đóng gói: 100

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit TM2S6-C

MÔ TẢ SẢN PHẨM

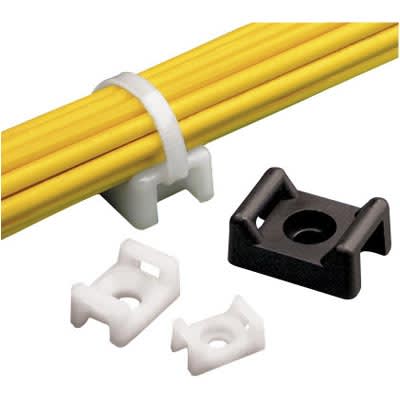

Panduit TM2S6-C Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #6 (M3) screw. For indoor use and are suitable for miniature, intermediate and standard cross-section cable ties.

_THÔNG SỐ KỸ THUẬT:

Application Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface
Product Type Cable Tie Mount
Color Natural
Environment Indoor
Material Nylon 6.6
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Screw
Mounting Hole Thread Size #6
Overall Height (mm) 7
Overall Length (In.) 0.63
Overall Length (mm) 16
Overall Width (In.) 0.43
Overall Width (mm) 10.8
Standards Met CE Compliant, UL Recognized:E136577, RoHS Compliant
For Use With Miniature, Intermediate, Standard Cross-Section Ties
