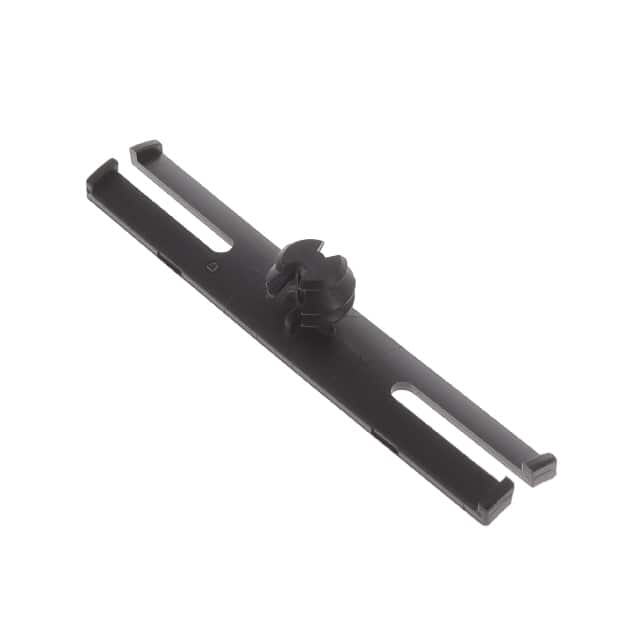

The fir tree harness mount is black and is 2.20" (55 mm) long. It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.

Name: The fir tree harness mount is black and is 2.20" (55 mm) long. It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.
Brand: Panduit
SKU: PAP321
Price: 9200.0 VND
Availability: InStock

by Panduit

9.200₫

(Giá chưa VAT).

Mã kho: PAP321

Mã nhà sản xuất: THMSC55H04-M30

Đơn vị tính: PC

Quy cách đóng gói: 1,000

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit THMSC55H04-M30

MÔ TẢ SẢN PHẨM

The fir tree harness mount is black and is 2.20" (55 mm) long. It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Application	For Securing Wire Harness Assemblies, Cables and Corrugated Loom Tubing in The Automotive, Marine, White Goods, Heavy Equipment and Mass Transit-Rail Markets.
Product Type	Cable Tie Mount
Color	Black
Flammability Rating	UL94V-2
Environment	Indoor
Material	Heat Stabilized Nylon 6.6
Maximum Compatible Panel Thickness (In.)	0.3
Maximum Compatible Panel Thickness (mm)	7.6
Maximum Operating Temperature (°C)	115
Maximum Operating Temperature (°F)	239
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Mount Method	Fir Tree Mount
Overall Height (In.)	0.38
Overall Height (mm)	9.8
Overall Length (In.)	2.2
Overall Length (mm)	55
Overall Width (In.)	0.35
Overall Width (mm)	50.3
Resistance Properties	Heat Resistant
Standards Met	Ul94 V-2, Rohs Compliant: Meets 2000/53/Ec Elv Standards and All Industry Standards for Hazardous Material Content
Sub Brand	NA
