The harness cable tie mount in black is applied with a fir tree push barb. It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor and high-temperature environments. It comes in packa

Name: The harness cable tie mount in black is applied with a fir tree push barb. It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor and high-temperature environments. It comes in packa
Brand: Panduit
SKU: PAP315
Price: 11800.0 VND
Availability: InStock

by Panduit

11.800₫

(Giá chưa VAT).

Mã kho: PAP315

Mã nhà sản xuất: THM1SC-C30

Quy cách đóng gói: 100

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit THM1SC-C30

MÔ TẢ SẢN PHẨM

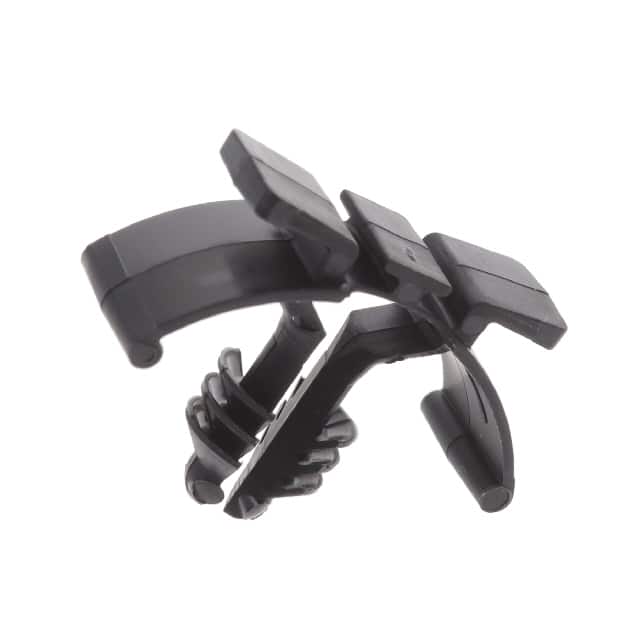

The harness cable tie mount in black is applied with a fir tree push barb. It is made of heat-stabilized nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor and high-temperature environments. It comes in packages of 100, Black.

_THÔNG SỐ KỸ THUẬT:

Application	Harness Cable Tie Mount is Applied With a Fir Tree Push Barb, for Indoor Environments
Note	High Temperature
Product Type	Cable Tie Mount
Color	Black
Flammability Rating	UL94V-2
Environment	Indoor
Material	Heat Stabilized Nylon 6.6
Maximum Compatible Panel Thickness (In.)	0.25
Maximum Compatible Panel Thickness (mm)	6.4
Maximum Operating Temperature (°C)	115
Maximum Operating Temperature (°F)	239
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Mount Method	Fir Tree Mount
Overall Height (In.)	0.74
Overall Height (mm)	18.8
Overall Length (In.)	0.98
Overall Length (mm)	24.9
Overall Width (In.)	0.38
Overall Width (mm)	9.7
Resistance Properties	Heat Resistant
Standards Met	UL Recognized E136577, RoHS Compliant
Sub Brand	NA
