Panduit Heavy Duty Fir Tree Push Mount with 12" Wide Strap Cable Tie Assembly, hole size 0.354", Heat Stabilized, Impact Modified, Weather Resistant Nylon 6.6. [PUME925-3E-C350]; PAO340

Name: Panduit Heavy Duty Fir Tree Push Mount with 12" Wide Strap Cable Tie Assembly, hole size 0.354", Heat Stabilized, Impact Modified, Weather Resistant Nylon 6.6. [PUME925-3E-C350]; PAO340
Brand: Panduit
SKU: PAO340
Price: 40500.0 VND
Availability: InStock

by Panduit

40.500₫

(Giá chưa VAT).

Mã kho: PAO340

Mã nhà sản xuất: PUME925-3E-C350

Quy cách đóng gói: 100

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit PUME925-3E-C350

MÔ TẢ SẢN PHẨM

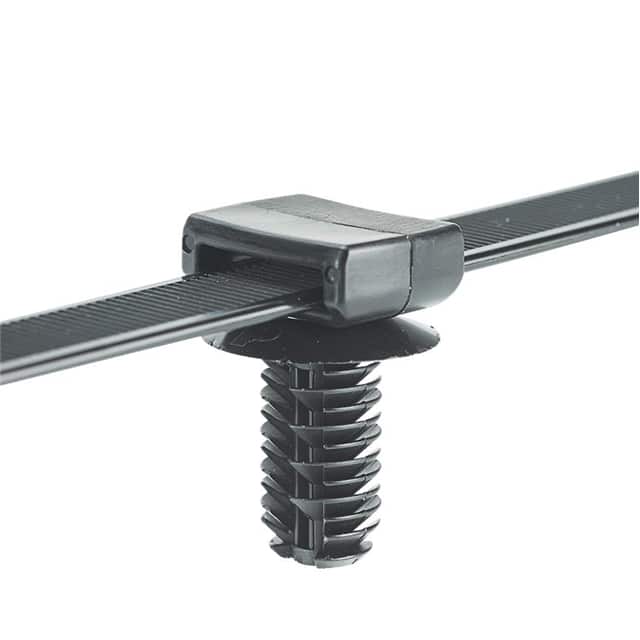

Heavy Duty Fir Tree Push Mount with 12" Wide Strap Cable Tie Assembly, hole size 0.354", Heat Stabilized, Impact Modified, Weather Resistant Nylon 6.6.

_THÔNG SỐ KỸ THUẬT:

Application	They Are a Reliable and Cost Effective Solution for Securing Wire Harnesses in The Automotive, Marine, White Goods, Heavy Equipment and Mass Transit-Rail Markets
Product Type	Cable Tie Mount
Color	Black
Environment	Indoor/Outdoor
Material	Heat Stabilized/Weather Resistant Nylon 6.6
Maximum Compatible Panel Thickness (In.)	0.62
Maximum Compatible Panel Thickness (mm)	16
Maximum Operating Temperature (°C)	115
Maximum Operating Temperature (°F)	239
Minimum Loop Tensile Strength (N)	222.41
Minimum Loop Tensile Strength (lb)	50
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Mount Method	Fir Tree Mount
Mounting Hole Thread Size	NA
Overall Height (In.)	1.1
Overall Height (mm)	28
Overall Length (In.)	12.1
Overall Length (mm)	307
Overall Width (In.)	0.8
Overall Width (mm)	30
Resistance Properties	Heat and UV Resistant
Standards Met	Chemical Resistance at 21 ° C (70 ° F): Excellent Resistance to Common Transportation Fluids Including: Ethylene Glycol, Gasoline, Jet Fuel, Hydraulic Fluid, Transmission Fluids and 10% Sodium Chloride Solution, Environmental Compliance: Meets 2000/53/Ec
Sub Brand	Pan-Ty®
