The push button cable tie mount requires a 0.25" (6.4 mm) hole and is black. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 1000.

Name: The push button cable tie mount requires a 0.25" (6.4 mm) hole and is black. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. It comes in packages of 1000.
Brand: Panduit
SKU: PAN710
Price: 6700.0 VND
Availability: InStock

by Panduit

6.700₫

(Giá chưa VAT).

Mã kho: PAN710

Mã nhà sản xuất: PBMS-H25-M0

Đơn vị tính: PC

Quy cách đóng gói: 1,000

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit PBMS-H25-M0

MÔ TẢ SẢN PHẨM

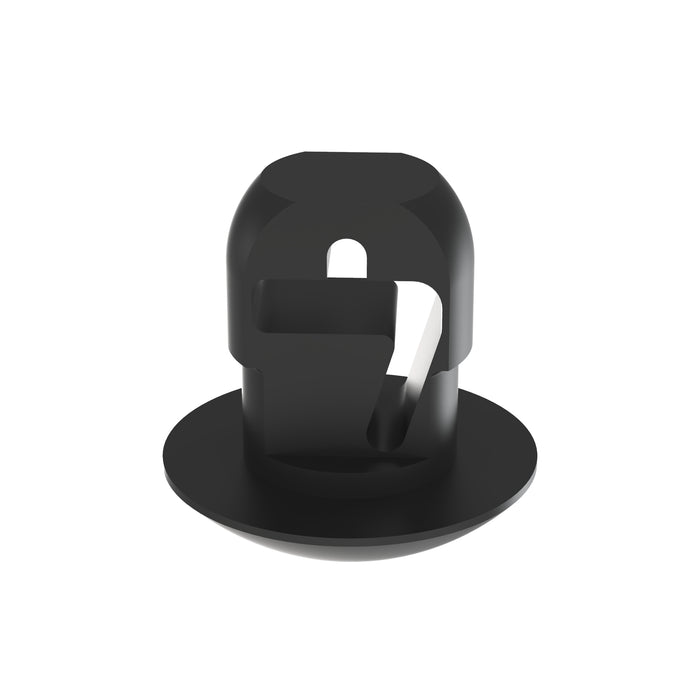

Panduit PBMS-H25-M0 Push Button Cable Mounts can be used where both sides of the panel are accessible and require no adhesive or additional mounting hardware. They have a maximum panel thickness limit of 0.13” (3.2mm) and require a panel hole of 0.25” (6.4mm) for mounting. For use in outdoor environ

_THÔNG SỐ KỸ THUẬT:

Application	Push Button Mounts for Use where Both Sides of the Panel are Accessible
Product Type	Cable Tie Mount
Color	Black
Environment	Indoor/Outdoor
Material	Weather Resistant Nylon 6.6
Maximum Compatible Panel Thickness (In.)	0.13
Maximum Compatible Panel Thickness (mm)	3.3
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Mount Method	Push Barb
Overall Height (In.)	0.4
Overall Height (mm)	10.2
Overall Length (In.)	0.42
Overall Length (mm)	10.7
Overall Width (In.)	0.42
Overall Width (mm)	10.7
Standards Met	CE Compliant, UL Recognized: E136577, RoHS Compliant
For Use With	Miniature, Intermediate, Standard Cross-Section Ties
