The multiple gang cable tie mount in black is used to fasten wires and cables at one inch above a mounting surface at equal spaced distances. It uses a 1/4" (M6) screw mounting method and made of weather-resistant nylon 6.6, which increases mechanical str

Name: The multiple gang cable tie mount in black is used to fasten wires and cables at one inch above a mounting surface at equal spaced distances. It uses a 1/4" (M6) screw mounting method and made of weather-resistant nylon 6.6, which increases mechanical str
Brand: Panduit
SKU: PAN673
Price: 57800.0 VND
Availability: InStock

by Panduit

57.800₫

(Giá chưa VAT).

Mã kho: PAN673

Mã nhà sản xuất: OMTM-S25-C0

Quy cách đóng gói: 100

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit OMTM-S25-C0

MÔ TẢ SẢN PHẨM

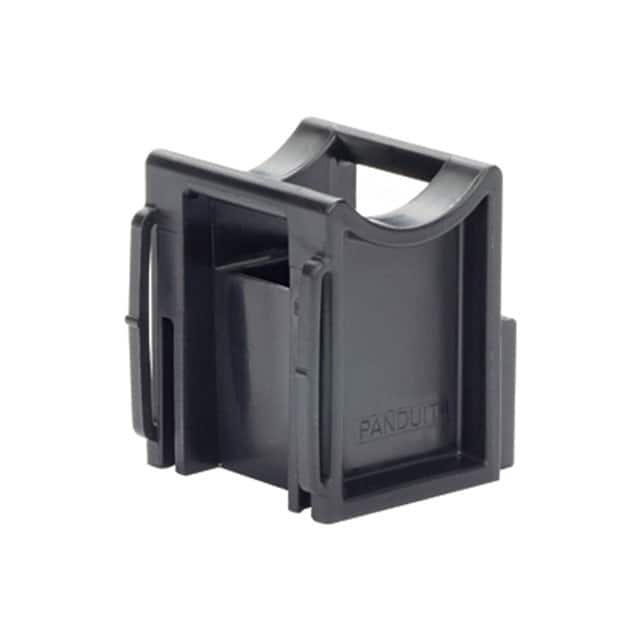

The multiple gang cable tie mount in black is used to fasten wires and cables at one inch above a mounting surface at equal spaced distances. It uses a 1/4" (M6) screw mounting method and made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffnes

_THÔNG SỐ KỸ THUẬT:

Application	To Fasten Wiring And Cables at One Inch Above a Mounting Surface and Spaced Equal Distances (One Inch Center-To-Center) From Each Other. This is Particularly Beneficial for Medium to High Voltage Cables to Address Corona and Other Electrical Effects.
Product Type	Cable Tie Mount
Color	Black
Flammability Rating	V-2
Environment	Indoor/Outdoor
Material	Weather Resistant Nylon 6.6
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Mount Method	Screw
Overall Height (In.)	1.26
Overall Height (mm)	32
Overall Length (In.)	1.09
Overall Length (mm)	27.7
Overall Width (In.)	0.9
Overall Width (mm)	50.3
Resistance Properties	UV Resistant
Standards Met	RoHS Compliant
Sub Brand	NA
For Use With	Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties
