The multiple tie plate in natural color supports three bundles and is used with miniature, intermediate, and standard cable ties. It uses #6 (M3) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness

Name: The multiple tie plate in natural color supports three bundles and is used with miniature, intermediate, and standard cable ties. It uses #6 (M3) screws and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness
Brand: Panduit
SKU: PAN525
Price: 23700.0 VND
Availability: InStock

by Panduit

23.700₫

(Giá chưa VAT).

Mã kho: PAN525

Mã nhà sản xuất: MTP3S-E6-C

Đơn vị tính: RL

Quy cách đóng gói: 100

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit MTP3S-E6-C

MÔ TẢ SẢN PHẨM

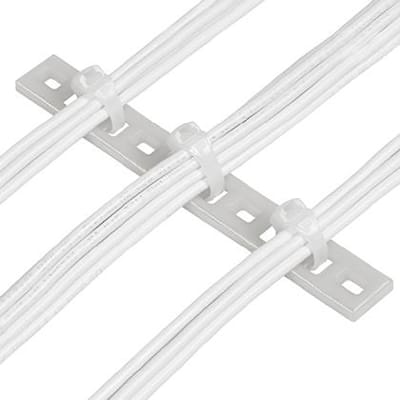

Panduit’s MTP3S-E6-C Multiple Tie Plates are designed to secure bundles that are closely spaced. With their low profile design, bundles stay close to mounting surface making them ideal for areas where overhead space is limited. These mounts can be used with miniature through standard cable ties and

_THÔNG SỐ KỸ THUẬT:

Application	Low Profile Multiple Tie Plates Used to Secure Closely Spaced Wire Bundles
Product Type	Cable Tie Mount
Color	Natural
Environment	Indoor
Material	Nylon 6.6
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Mount Method	Screw
Mounting Hole Thread Size	#6
Overall Height (In.)	3.75
Overall Height (mm)	95.2
Overall Length (In.)	4.25
Overall Length (mm)	108
Overall Width (In.)	0.5
Overall Width (mm)	50.3
Standards Met	UL Recognized: E136577,CE Compliant, RoHS Compliant
For Use With	Miniature, Intermediate, Standard Cross-Section Ties
