Cable Accessories, Ties & Tools > Cable Tie Mounts

The low profile cable tie mount in natural is designed to keep cable bundles close to mounting surface where overhead space is limited. It is 1.22" long x 1.22" wide (30.1 x 30.1 mm) and is mounted with a user supplied adhesive. It is made of nylon 6.6, w

by Panduit
9.000₫
(Giá chưa VAT).
Mã kho: PAJ869

Mã nhà sản xuất: AM2-M

Đơn vị tính: PC

Quy cách đóng gói: 1,000

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit AM2-M

MÔ TẢ SẢN PHẨM

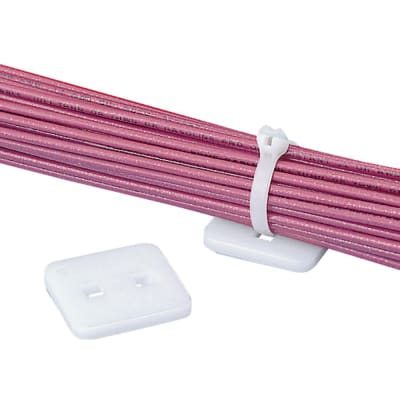

The low profile cable tie mount in natural is designed to keep cable bundles close to mounting surface where overhead space is limited. It is 1.22" long x 1.22" wide (30.1 x 30.1 mm) and is mounted with a user supplied adhesive. It is made of nylon 6.6, which increases mechanical strength, heat and

_THÔNG SỐ KỸ THUẬT:

Application Low Profile Cable Tie Mount, Used with Miniature, Intermediate, and Standard Cable Ties
Product Type Cable Tie Mount
Color Natural
Flammability Rating UL94V-2
Environment Indoor
Material Nylon 6.6
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Mount Method Self-Adhesive
Overall Height (mm) 3.2
Overall Length (In.) 1.12
Overall Length (mm) 28.4
Overall Width (In.) 1.12
Overall Width (mm) 50.3
Resistance Properties Heat and Wear Resistant
Standards Met CE Compliant, UL Recognized: E136577, RoHS Compliant
Sub Brand NA
For Use With Miniature, Intermediate, Standard Cross-Section Ties
