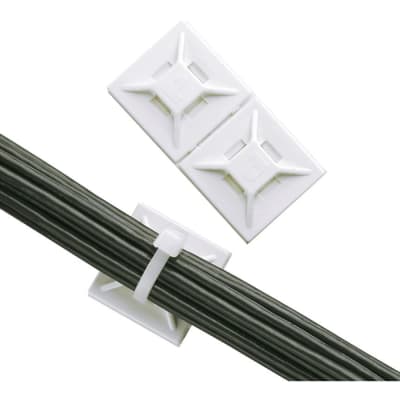

The 4-way adhesive backed cable tie mount in white is mounted with acrylic adhesive tape. It is 0.75" long x 0.75" wide (19.1 x 19.1 mm) and made of ABS plastic. It is used with miniature and intermediate cable ties. It is designed for indoor, high-temper

Name: The 4-way adhesive backed cable tie mount in white is mounted with acrylic adhesive tape. It is 0.75" long x 0.75" wide (19.1 x 19.1 mm) and made of ABS plastic. It is used with miniature and intermediate cable ties. It is designed for indoor, high-temper
Brand: Panduit
SKU: PAJ829
Price: 9400.0 VND
Availability: InStock

by Panduit

9.400₫

(Giá chưa VAT).

Mã kho: PAJ829

Mã nhà sản xuất: ABMM-AT-D

Đơn vị tính: PC

Quy cách đóng gói: 500

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit ABMM-AT-D

MÔ TẢ SẢN PHẨM

Panduit’s ABMM-AT-D 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of ABS plastic. These mount can be used with miniature and intermediate cable ties and are designed for indoor, high-temperature

_THÔNG SỐ KỸ THUẬT:

Application	Cable Tie Entry from All Four Sides, Used with Miniature, and Intermediate Cables Ties
Product Type	Cable Tie Mount
Color	White
Environment	Indoor
Material	ABS
Maximum Compatible Panel Thickness (In.)	0.04
Maximum Compatible Panel Thickness (mm)	1
Maximum Operating Temperature (°C)	70
Maximum Operating Temperature (°F)	158
Minimum Operating Temperature (°C)	-29
Minimum Operating Temperature (°F)	-20
Mount Method	Acrylic Adhesive Tape
Overall Height (In.)	0.18
Overall Height (mm)	4.6
Overall Length (In.)	0.75
Overall Length (mm)	19.1
Overall Width (In.)	0.75
Overall Width (mm)	19.1
Standards Met	CE Compliant, UL Recognized: E136577, RoHS Compliant
Static Load Capacity (kg)	0.136
Static Load Capacity (lb)	0.3
For Use With	Miniature, Intermediate Cross-Section Ties
