Cable Accessories, Ties & Tools > Cable Tie Mounts

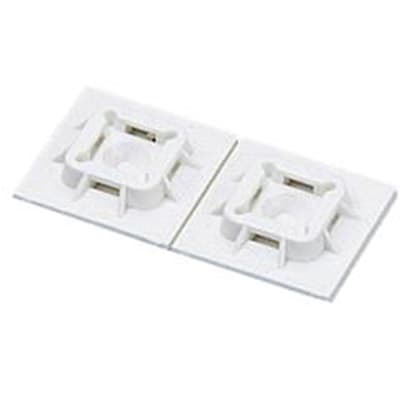

Panduit Cable & Wire Ties, Mounts & Straps, [ABM112-AT-D0]; PAF192

by Panduit
18.000₫
(Giá chưa VAT).
Mã kho: PAF192

Mã nhà sản xuất: ABM112-AT-D0

Đơn vị tính: PC

Quy cách đóng gói: 500

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Cable Wire Ties Mounts Straps / Cable Tie Mounts: Panduit ABM112-AT-D0

MÔ TẢ SẢN PHẨM

Panduit’s ABM112-AT-D0 4-way acrylic-based adhesive backed cable tie mounts have been designed for fast installation and long-term performance and reliability. They are made of Weather Resistant Nylon 6.6. These mounts can be used with miniature, intermediate, and standard cable ties and are designe

_THÔNG SỐ KỸ THUẬT:

Application Used with Miniature, Intermediate, and Standard Cables Ties
Product Type Cable Tie Mount
Color Black
Environment Indoor/Outdoor
Material Weather Resistant Nylon 6.6
Maximum Compatible Panel Thickness (In.) 0.04
Maximum Compatible Panel Thickness (mm) 1
Maximum Operating Temperature (°C) 82
Maximum Operating Temperature (°F) 180
Minimum Operating Temperature (°C) -29
Minimum Operating Temperature (°F) -20
Mount Method Acrylic Adhesive Tape
Mounting Hole Thread Size 0.14
Overall Height (In.) 0.2
Overall Height (mm) 5.1
Overall Length (In.) 1.12
Overall Length (mm) 28.4
Overall Width (In.) 1.12
Overall Width (mm) 50.3
Resistance Properties UV Resistant
Standards Met CE Compliant, UL Recognized, RoHS Compliant
Static Load Capacity (kg) 0.286
Static Load Capacity (lb) 0.63
For Use With Miniature, Intermediate, Standard Cross-Section Ties
