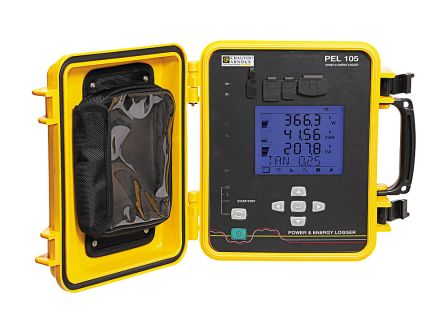

Chauvin Arnoux PEL 105 Current, Energy, Frequency, Harmonics, Power, Voltage Data Logger [P01157160]; 111-6765
0₫
Mã kho: 1116765
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Measurement Parameters | Current, Energy, Frequency, Harmonics, Power, Voltage |
Sensor Type | Current Sensor, Voltage Probes |
Number of Input Channels | 9 |
Interface Type | Bluetooth, Ethernet, USB, Wi-Fi |
Maximum Voltage Measurement | 600 V ac @ 400 Hz, 1000 V ac @ 50/60 Hz, 1000 V dc |
Power Source | From Unit Under Test, Mains |
IP Rating | IP67 |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +50°C |
Maximum Current Measurement | 5000 A dc, 10000 A ac |
Display Type | LCD |
Display Type | LCD |
Battery Type | Rechargeable Ni-MH |
Includes | Operating manual on USB key, Quick start-up guide, 1 bag, 1 safety datasheet, 1 SD card, 1 set of inserts/rings, 1 set of waterproof plugs, 1 USB cable, 4 IP67 A196 3m long AmpFLEX®, 5 black 1000 V CAT IV crocodile clips, 5 x 3 m black silicone cables straight banana / straight banana |
Best Voltage Measurement Accuracy | ±0.2 % + 0.2V |
Dimensions | 245 x 270 x 180mm |
Best Current Measurement Accuracy | ±0.5 % |
