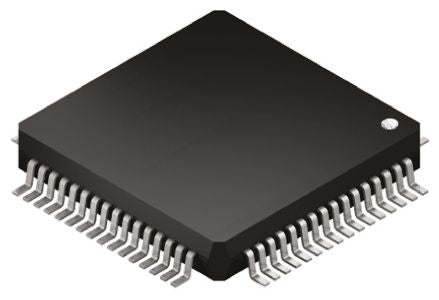

Analog Devices AD7609BSTZ Data Acquisition System IC, 18 bit, 200ksps, 80μs, 64-Pin LQFP [AD7609BSTZ]; 160-1710
0₫
Mã kho: 1601710
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of ADCs | 18 |
Data Rate | 200ksps |
Resolution | 18 bit |
Signal to Noise Ratio | 101dB |
Maximum Settling Time | 80µs |
Mounting Type | Surface Mount |
Package Type | LQFP |
Pin Count | 64 |
Integral Nonlinearity Error | ±7.5LSB |
Full Scale Error | ±140LSB |
Power Supply Type | Single |
Typical Single Supply Voltage | 5 V |
Height | 1.45mm |
Dimensions | 10.2 x 10.2 x 1.45mm |
Length | 10.2mm |
Maximum Operating Temperature | +85 °C |
Width | 10.2mm |
Minimum Operating Temperature | -40 °C |
