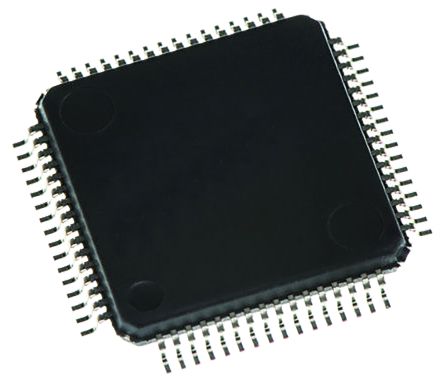

Analog Devices AD7605-4BSTZ Data Acquisition System IC, 16 bit, 300ksps, 80μs, 64-Pin LQFP [AD7605-4BSTZ]; 172-7832
0₫
Mã kho: 1727832
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of ADCs | 1 |
Data Rate | 300ksps |
Resolution | 16 bit |
Signal to Noise Ratio | 90dB |
Maximum Settling Time | 80µs |
Mounting Type | Surface Mount |
Package Type | LQFP |
Pin Count | 64 |
Integral Nonlinearity Error | ±2LSB |
Full Scale Error | ±32LSB |
Power Supply Type | Single |
Typical Single Supply Voltage | 2.5 → 5 V |
Width | 10.2mm |
Dimensions | 10.2 x 10.2 x 1.45mm |
Minimum Operating Temperature | -40 °C |
Height | 1.45mm |
Length | 10.2mm |
Maximum Operating Temperature | +85 °C |
