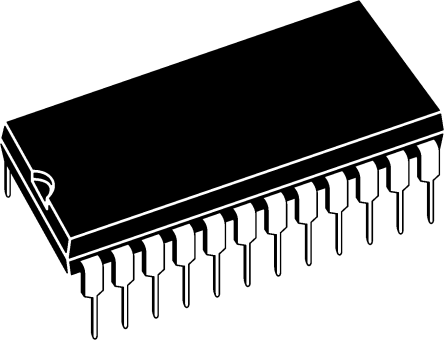

Analog Devices AD7569JNZ Data Acquisition System IC, 8 bit, 200kHz, 4μs, 24-Pin PDIP [AD7569JNZ]; 538-4145
0₫
Mã kho: 5384145
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of ADCs | 1 |
Number of DACs | 1 |
Data Rate | 200kHz |
Resolution | 8 bit |
Signal to Noise Ratio | 44dB |
Maximum Settling Time | 4µs |
Mounting Type | Through Hole |
Package Type | PDIP |
Pin Count | 24 |
Integral Nonlinearity Error | ±1LSB |
Full Scale Error | ±3LSB |
Power Supply Type | Dual, Single |
Typical Single Supply Voltage | 5 V |
Typical Dual Supply Voltage | ±5V |
Maximum Operating Temperature | +70 °C |
Length | 31.75mm |
Dimensions | 31.75 x 6.35 x 3.3mm |
Width | 6.35mm |
Height | 3.3mm |
Minimum Operating Temperature | 0 °C |
