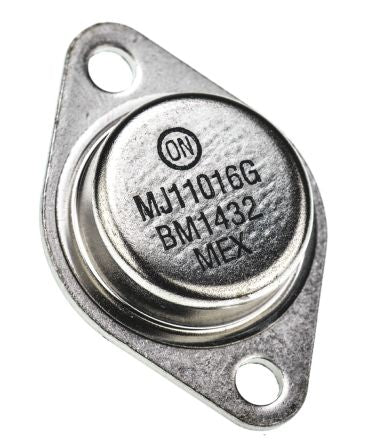

ON Semi MJ11016G NPN Darlington Pair, 30 A 120 V HFE:200, 3-Pin TO-204 [MJ11016G]; 122-0071
0₫
Mã kho: 1220071
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 30 A |
| Maximum Collector Emitter Voltage | 120 V |
| Maximum Emitter Base Voltage | 5 V |
| Package Type | TO-204 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 200 |
| Maximum Base Emitter Saturation Voltage | 5 V |
| Maximum Collector Base Voltage | 120 V |
| Maximum Collector Emitter Saturation Voltage | 4 V |
| Width | 26.67mm |
| Minimum Operating Temperature | -55 °C |
| Dimensions | 39.37 x 26.67 x 8.51mm |
| Height | 8.51mm |
| Length | 39.37mm |
| Maximum Operating Temperature | +200 °C |
