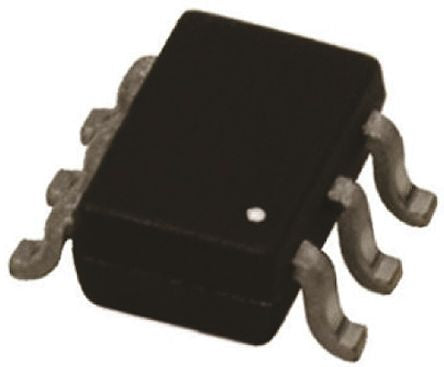

ON Semi FMBA14 Darlington Pair [FMBA14]; 146-2144
0₫
Mã kho: 1462144
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 1.2 A |
| Maximum Collector Emitter Voltage | 30 V |
| Maximum Emitter Base Voltage | 10 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 10000 |
| Maximum Collector Base Voltage | 30 V |
| Maximum Collector Emitter Saturation Voltage | 1.5 V |
| Maximum Collector Cut-off Current | 100nA |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 3 x 1.7 x 1mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Power Dissipation | 700 mW |
| Width | 1.7mm |
| Height | 1mm |
| Length | 3mm |
