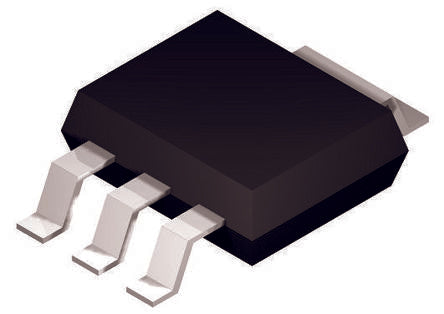

Nexperia PZTA14,115 NPN Darlington Pair, 500 mA 30 V HFE:10000, 3 + Tab-Pin SOT-223 [PZTA14,115]; 725-8473
by Nexperia
0₫
Mã kho: 7258473
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 500 mA |
| Maximum Collector Emitter Voltage | 30 V |
| Maximum Emitter Base Voltage | 10 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 10000 |
| Maximum Collector Base Voltage | 30 V |
| Maximum Collector Emitter Saturation Voltage | 1.5 V |
| Maximum Collector Cut-off Current | 0.0001mA |
| Maximum Power Dissipation | 1.25 W |
| Width | 3.7mm |
| Minimum Operating Temperature | -65 °C |
| Length | 6.7mm |
| Height | 1.7mm |
| Dimensions | 6.7 x 3.7 x 1.7mm |
| Maximum Operating Temperature | +150 °C |
