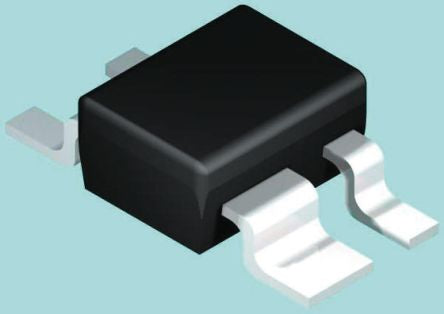

Infineon BCV61BE6327HTSA1 Dual NPN Darlington Pair, 100 mA 30 V HFE:100, 4-Pin SOT-143 [BCV61BE6327HTSA1]; 165-7709
by Infineon
0₫
Mã kho: 1657709
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Transistor Type | NPN |
Maximum Continuous Collector Current | 100 mA |
Maximum Collector Emitter Voltage | 30 V |
Maximum Emitter Base Voltage | 6 V |
Package Type | SOT-143 |
Mounting Type | Surface Mount |
Pin Count | 4 |
Number of Elements per Chip | 2 |
Minimum DC Current Gain | 100 |
Maximum Base Emitter Saturation Voltage | 900 mV |
Maximum Collector Base Voltage | 30 V |
Maximum Collector Emitter Saturation Voltage | 600 mV |
Maximum Collector Cut-off Current | 5µA |
Maximum Operating Temperature | +150 °C |
Length | 2.9mm |
Height | 0.9mm |
Dimensions | 2.9 x 1.3 x 0.9mm |
Maximum Power Dissipation | 300 mW |
Width | 1.3mm |
