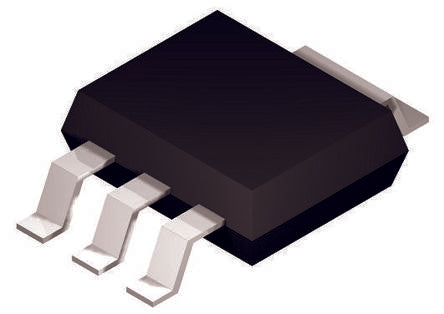

Diodes Inc FZT696BTA NPN Darlington Pair, 500 mA 180 V HFE:150, 3 + Tab-Pin SOT-223 [FZT696BTA]; 122-0251
by DiodesZetex
0₫
Mã kho: 1220251
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 500 mA |
| Maximum Collector Emitter Voltage | 180 V |
| Maximum Emitter Base Voltage | 5 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 150 |
| Maximum Base Emitter Saturation Voltage | 0.9 V |
| Maximum Collector Base Voltage | 180 V |
| Maximum Collector Emitter Saturation Voltage | 0.25 V |
| Maximum Collector Cut-off Current | 0.1µA |
| Length | 6.55mm |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 6.55 x 3.55 x 1.65mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Power Dissipation | 2 W |
| Height | 1.65mm |
| Width | 3.55mm |
