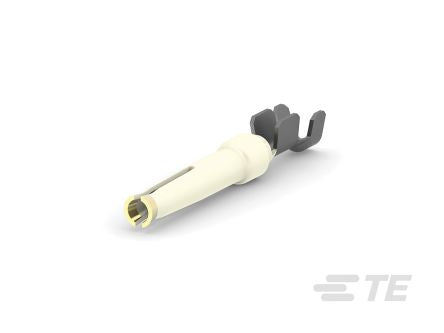

SOCKET CONT DUPL PLT STRIP HD- [1658537-3]; 192-0038
0₫
Mã kho: 1920038
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Wire Size | 24 → 20 AWG |
| Maximum Wire Size mm² | 0.6mm² |
| Contact Type | Socket |
| Minimum Wire Size AWG | 24AWG |
| Contact Size | 20 |
| Maximum Wire Size AWG | 20AWG |
| Current Rating | 2A |
| Termination Method | Crimp |
| Length | 14.1mm |
