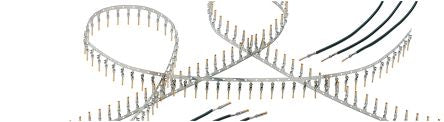

Harting D-sub Series Female Crimp D-sub Connector Contact, PdNi Plated Pin, 24 → 28 AWG [09670007268]; 141-0378
by HARTING
0₫
Mã kho: 1410378
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| Contact Material | Brass |
| Contact Plating | PdNi |
| Maximum Contact Resistance | ≤10MΩ |
| Minimum Wire Size mm² | 0.09mm² |
| Wire Size | 24 → 28 AWG |
| Maximum Wire Size mm² | 0.25mm² |
| Contact Type | Pin |
| Minimum Wire Size AWG | 28AWG |
| Series | D-Sub |
| Maximum Wire Size AWG | 24AWG |
| Current Rating | 6.5A |
| Termination Method | Crimp |
| Length | 14.1mm |
