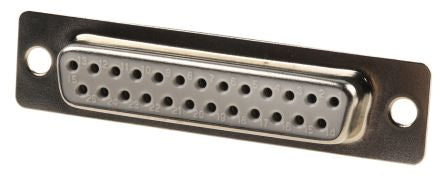

Wurth Elektronik 618 Series Cable Mount, 25 Pin Standard D-Sub D-sub Connector Socket, Shell Size B [61802524923]; 121-6775
0₫
Mã kho: 1216775
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.77 mm, 2.84mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | B |
| Current Rating | 3.0A |
| Housing Material | Steel |
| Voltage Rating | 125.0 V |
| Length | 53.04mm |
| Width | 12.5mm |
| Depth | 10.7mm |
| Dimensions | 53.04 x 12.5 x 10.7mm |
| Contact Plating | Gold |
| Maximum Operating Temperature | +105°C |
| Series | 618 |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -40.0°C |
