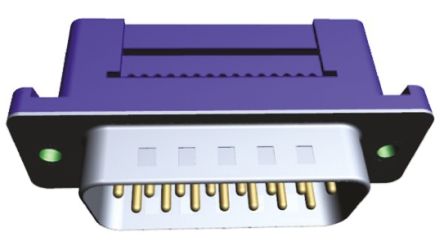

Wurth Elektronik 618 Series 2.77 mm, 2.84 mm Pitch 25 Way IDC D-sub Connector, Plug, Steel Shell [618025226221]; 771-8253
0₫
Mã kho: 7718253
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.77 mm, 2.84mm |
| Termination Method | IDC |
| Current Rating | 3.0A |
| Housing Material | Steel |
| Voltage Rating | 250 V ac |
| Length | 53.1mm |
| Width | 12.5mm |
| Depth | 17.25mm |
| Dimensions | 53.1 x 12.5 x 17.25mm |
| Minimum Operating Temperature | -40.0°C |
| Contact Material | Copper Alloy |
| Maximum Operating Temperature | +85°C |
| Series | 618 |
| Contact Plating | Gold |
