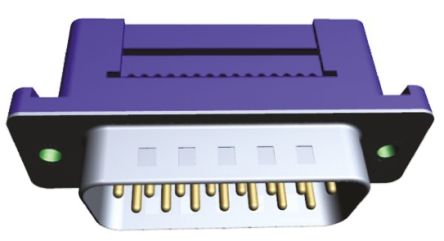

Wurth Elektronik 618 Series 2.77 mm, 2.84 mm Pitch 15 Way IDC D-sub Connector, Plug, Steel Shell [618015226221]; 172-5426
0₫
Mã kho: 1725426
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.77 mm, 2.84mm |
| Termination Method | IDC |
| Current Rating | 3.0A |
| Housing Material | Steel |
| Voltage Rating | 250.0 V |
| Length | 39.2mm |
| Width | 12.5mm |
| Depth | 17.25mm |
| Dimensions | 39.2 x 12.5 x 17.25mm |
| Maximum Operating Temperature | +85°C |
| Contact Plating | Gold |
| Minimum Operating Temperature | -40.0°C |
| Series | 618 |
| Contact Material | Copper Alloy |
