![Wurth Elektronik 618009231121 7718329](http://nguyenxuong.com/cdn/shop/products/R7718339-01_6bfa4da4-c8f9-4abf-8b1a-f9fdd575e94a_444x207.jpg?v=1594423445)

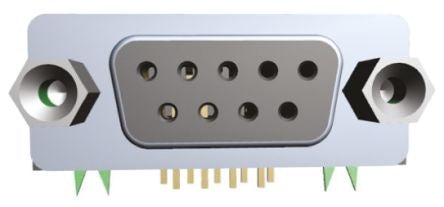

Wurth Elektronik 618 Series, 9 Way Right Angle Through Hole PCB D-sub Connector Socket, 2.77 mm, 2.84 mm Pitch [618009231121]; 771-8329
0₫
Mã kho: 7718329
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 9 |
Gender | Female |
Body Orientation | Right Angle |
Mounting Type | Through Hole |
Pitch | 2.77 mm, 2.84mm |
Termination Method | Solder |
Current Rating | 3.0A |
Housing Material | Steel |
Voltage Rating | 125 V ac |
Length | 30.8mm |
Width | 12.5mm |
Depth | 18.5mm |
Dimensions | 30.8 x 12.5 x 18.5mm |
Minimum Operating Temperature | -40.0°C |
Maximum Operating Temperature | +85°C |
Contact Plating | Gold |
Contact Material | Copper Alloy |
Series | 618 |
