![TE Connectivity 5747844-2 1644902](http://nguyenxuong.com/cdn/shop/products/F7561082-01_444x338.jpg?v=1594282754)

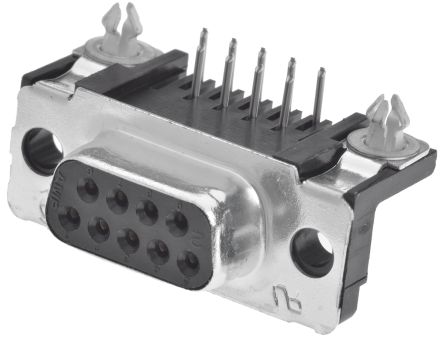

TE Connectivity AMPLIMITE HD-20 Series, 9 Way Right Angle Through Hole PCB D-sub Connector Socket, 7.01mm Pitch [5747844-2]; 164-4902
0₫
Mã kho: 1644902
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 9 |
Gender | Female |
Body Orientation | Right Angle |
Mounting Type | Through Hole |
Pitch | 7.01mm |
Termination Method | Solder |
Mounting Hardware | Boardlocks |
Housing Material | Thermoplastic |
Voltage Rating | 250.0 V |
Length | 1.213in |
Width | 0.494in |
Depth | 0.243in |
Dimensions | 1.213 x 0.494 x 0.243in |
Minimum Operating Temperature | -55.0°C |
Maximum Operating Temperature | +105°C |
Contact Plating | Gold over Nickel |
Series | Amplimite HD-20 |
Contact Material | Phosphor Bronze |
