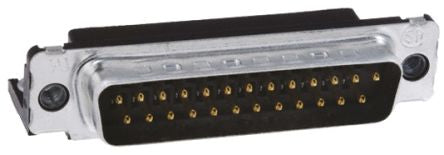

TE Connectivity AMPLIMITE HD-20 Series, 25 Way Right Angle PCB D-sub Connector Plug, 1.379mm Pitch [5747842-3]; 164-3395
0₫
Mã kho: 1643395
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 1.379mm |
| Mounting Hardware | Boardlocks, 4-40 UNC Threaded Inserts |
| Termination Method | Solder |
| Housing Material | Thermoplastic |
| Length | 53.04mm |
| Width | 12.55mm |
| Depth | 18.75mm |
| Dimensions | 53.04 x 12.55 x 18.75mm |
| Contact Size | 3 |
| Contact Plating | Tin over Nickel |
| Contact Material | Brass |
| Series | Amplimite HD-20 |
