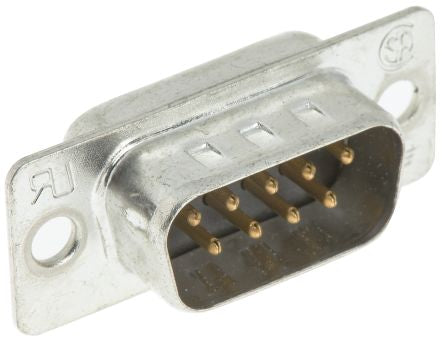

TE Connectivity AMPLIMITE HD-20 Series Cable Mount, 9 Pin Standard D-Sub D-sub Connector Plug, Shell Size E [5-747904-5]; 161-8658
0₫
Mã kho: 1618658
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.77mm |
| D Connector Type | Standard D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | E |
| Current Rating | 3.0A |
| Housing Material | Steel |
| Voltage Rating | 250.0 V |
| Length | 30.8mm |
| Width | 12.5mm |
| Depth | 6.1mm |
| Dimensions | 30.8 x 12.5 x 6.1mm |
| Contact Material | Brass |
| Contact Size | 20 |
| Maximum Operating Temperature | +105°C |
| Series | Amplimite HD-20 |
| Minimum Operating Temperature | -55.0°C |
| Contact Plating | Gold over Nickel |
