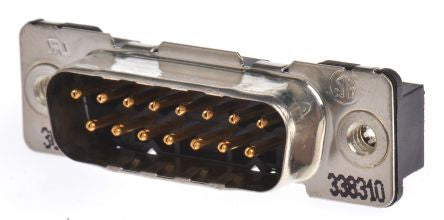

TE Connectivity AMPLIMITE HDP-20 Series, 15 Way Through Hole PCB D-sub Connector Plug, 2.74mm Pitch [1-338310-2]; 163-9860
0₫
Mã kho: 1639860
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Male |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| Pitch | 2.74mm |
| Termination Method | Solder |
| Mounting Hardware | Boardlocks, 4-40 UNC Threaded Inserts |
| Current Rating | 6.0A |
| Housing Material | PET |
| Length | 39.2mm |
| Width | 11.7mm |
| Depth | 12.5mm |
| Dimensions | 39.2 x 11.7 x 12.5mm |
| Minimum Operating Temperature | -55.0°C |
| Series | Amplimite HDP-20 |
| Contact Plating | Gold over Nickel |
| Maximum Operating Temperature | +105°C |
| Contact Material | Phosphor Bronze |
