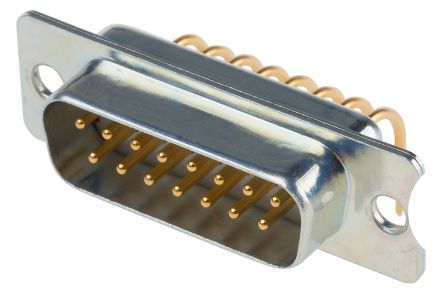

RS PRO 15 Way Right Angle Through Hole PCB D-sub Connector Plug; 472-691
by RS PRO
0₫
Mã kho: 472691
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 15 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | PET |
| Voltage Rating | 750 V ac/dc |
| Contact Plating | Gold |
| Minimum Operating Temperature | -55.0°C |
| Maximum Operating Temperature | +125°C |
| Contact Material | Copper Alloy |
