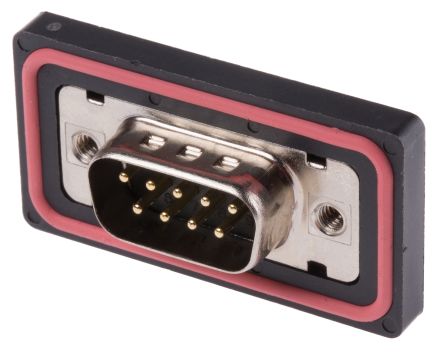

RS PRO GTC Sealed Series Panel Mount, 9 Pin Waterproof D-Sub D-sub Connector Plug, Shell Size E; 122-3036
by RS PRO
0₫
Mã kho: 1223036
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 9 |
Gender | Male |
Body Orientation | Straight |
Mounting Type | Panel Mount |
D Connector Type | Waterproof D-Sub |
Termination Method | Solder |
D-Sub Shell Size | E |
Housing Material | Thermoplastic |
Voltage Rating | 250.0 V |
Length | 39.4mm |
Width | 21.0mm |
Depth | 15.4mm |
Dimensions | 39.4 x 21 x 15.4mm |
Series | GTC Sealed |
Contact Plating | Gold |
