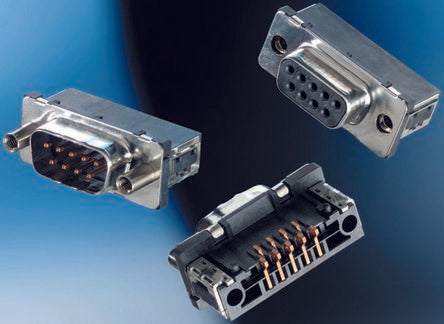

ERNI TMC Series, 25 Way Right Angle SMT PCB D-sub Connector Socket, 2.76mm Pitch, with 4-40 UNC Inserts [154244]; 454-2924
by Provertha
0₫
Mã kho: 4542924
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Pitch | 2.76mm |
| Mounting Hardware | 4-40 UNC Inserts |
| Termination Method | Solder |
| Current Rating | 3.5A |
| Housing Material | Liquid Crystal Polymer |
| Length | 53.0mm |
| Width | 14.7mm |
| Depth | 12.6mm |
| Dimensions | 53 x 14.7 x 12.6mm |
| Minimum Operating Temperature | -55.0°C |
| Series Number | 154 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Maximum Operating Temperature | +125°C |
| Series | TMC |
