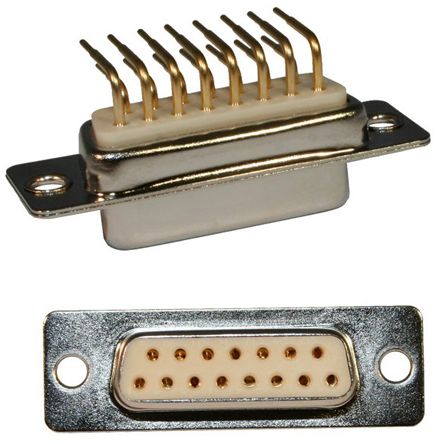

Norcomp 774, SEAL-D Series, 15 Way Right Angle Plug-In Mount PCB D-sub Connector Plug, 2.77mm Pitch [774-E15-113R001]; 135-4236
by Norcomp
0₫
Mã kho: 1354236
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 15 |
Gender | Male |
Body Orientation | Right Angle |
Mounting Type | Plug-In Mount |
Pitch | 2.77mm |
D Connector Type | Standard D-Sub |
Termination Method | Solder |
Current Rating | 5.0A |
Housing Material | Steel |
Voltage Rating | 500.0 V |
Length | 39.15mm |
Depth | 12.6mm |
Series | SEAL-D |
Minimum Operating Temperature | -50.0°C |
Contact Plating | Gold |
Maximum Operating Temperature | +100°C |
Contact Material | Brass |
Series Number | 774 |
