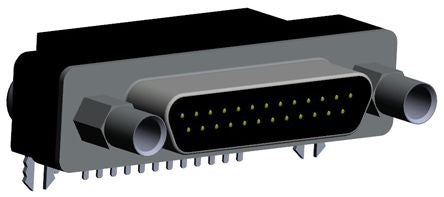

Norcomp 381, MICRO-D Series, 25 Way Right Angle PCB D-sub Connector Plug, 1.27mm Pitch, with Boardlocks, Standoffs [381-025-112L565]; 135-4276
by Norcomp
0₫
Mã kho: 1354276
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 1.27mm |
| D Connector Type | Micro-D |
| Termination Method | Solder |
| Mounting Hardware | Boardlocks, Standoffs |
| Current Rating | 1.0A |
| Housing Material | Steel |
| Voltage Rating | 500.0 V |
| Length | 19.69mm |
| Width | 14.9mm |
| Depth | 7.7mm |
| Dimensions | 19.69 x 14.9 x 7.7mm |
| Series Number | 381 |
| Contact Material | Copper Alloy |
| Series | MICRO-D |
| Contact Plating | Gold, Tin |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -55.0°C |
